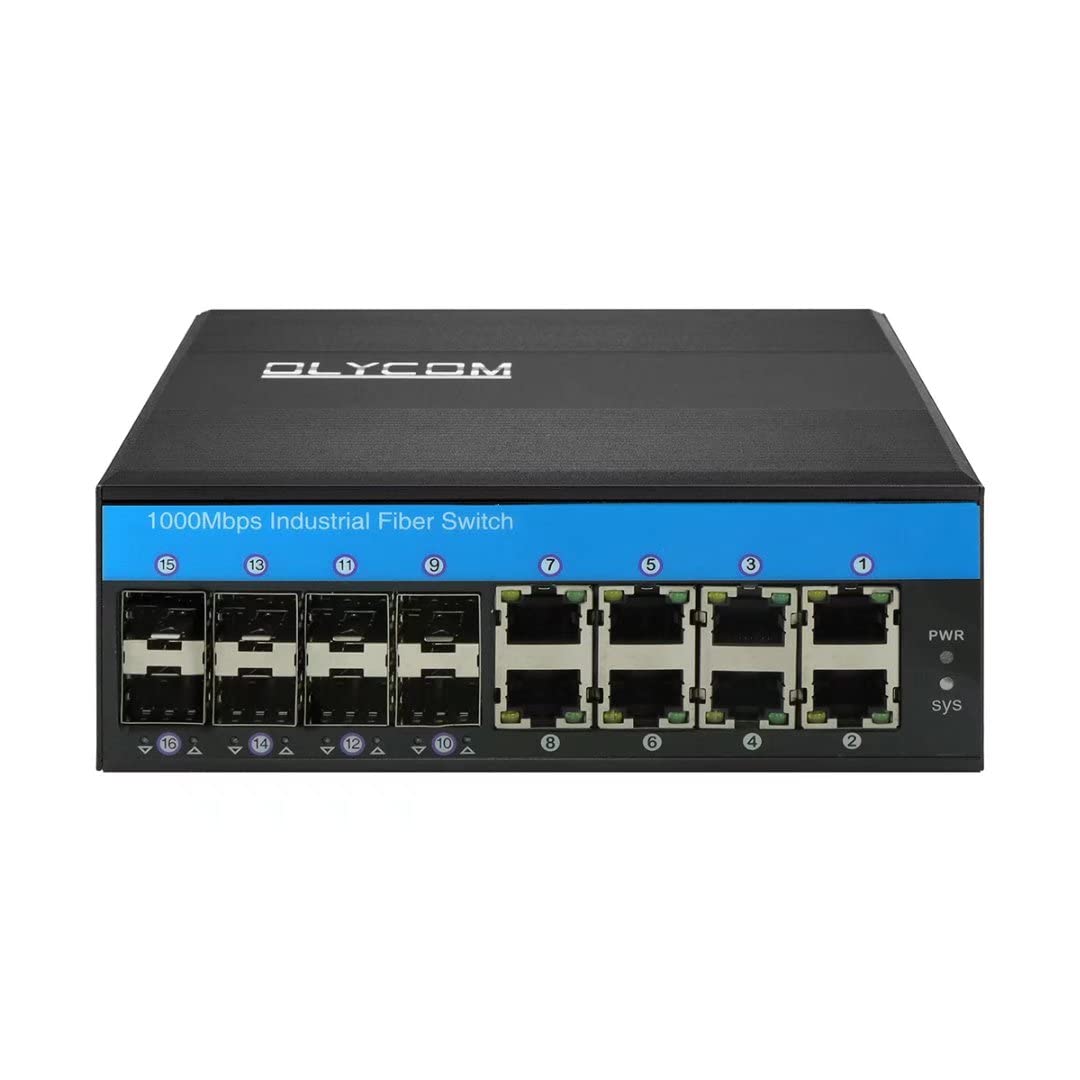

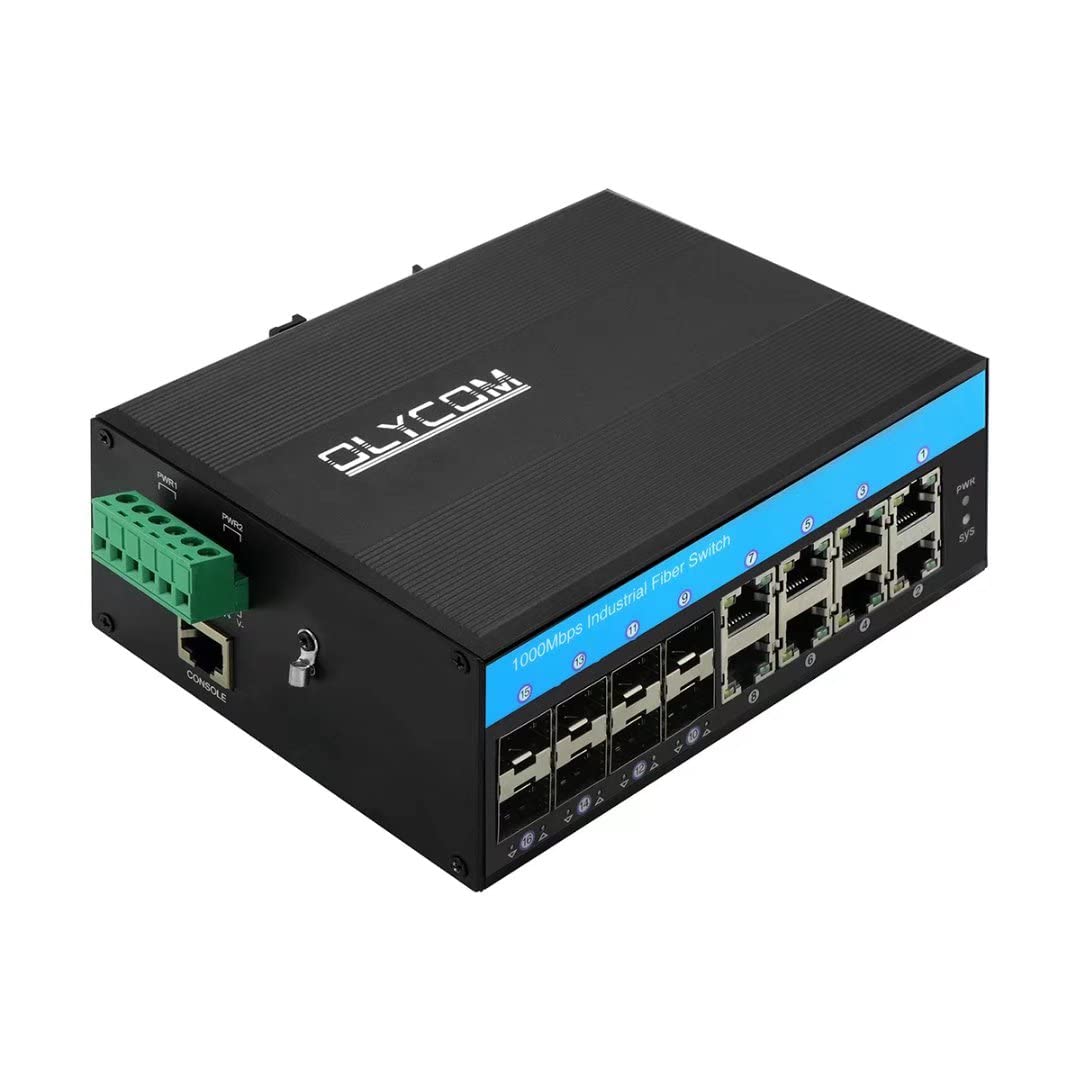

8 Port POE Managed Outdoor Switch - 10/100/1000Mbps with 8 SFP Ports, Din Rail Mount, VLAN, QoS, STP/RSTP - Ideal for Industrial Networks, Security Cameras & Outdoor WiFi Systems
Free shipping on all orders over $50
7-15 days international
7 people viewing this product right now!
30-day free returns
Secure checkout
77575541
Description
Q&A Q: Does this managed switch include the power supply? A: No, it doesn't include a power adapter. Q: Which power adapter does this POE L2 industrial switch require? A: The input voltage is 9-52VDC. If the input voltage is not 48VDC-52VDC, it is a non-POE managed switch and it can work too. The power adapter can be 12VDC 3A. If the input voltage is 48VDC-52VDC, it is a POE-managed industrial switch. Q: What POE standards it is? A: This is a POE+ industrial switch. Each network port can reach 30W if the power adapter is 48VDC5A. Q: What temperature range can this switch reach? A: The operating temperature is -40～75℃（-40～167°F） Q: Does it come with a small din rail? A: This is a din rail switch, but the din rail is not included. Q: Is it a managed switch? A: Yes, this is an L2-managed POE industrial fiber network switch. Full Gigabit Port The 16port managed POE Industrial ethernet switch has 8 ports 10/100/1000M downlink network ports, 8 ports 1000M uplink SFP fiber ports and one console port. The system bandwidth is 40Gbps and jumbo frame is 9.6K. L2+ Managed Switch This managed switch supports STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR), Qos, transport classification Qos, Cos, IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN, Protocol VLAN,VLAN convert, MVR, IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching ect. Smart Managed Software This managed switch support WEB and CLI console managed. Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing. DHCP client/Relay/Snooping/Snooping option 82/Relay option 82, RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP. Poe Switch This is a POE+ industrial switch. Each network port can reach 30W if the power adapter is 48VDC5A. If the power adapter is less than 5A, the POE can be 30W or 15.4W. Lightning Protection The industrial switch's 4KV power port surge protection and 2KV network port surge protection can adapt to harsh outdoor environments and ensure the reliability of the uninterrupted network system. Industrial Operating Temperature The 16 port industrial Ethernet switches are designed with industrial operating temperatures ranging from -40ºC to 75ºC to pass through dangerous environmental. Dual Power Supply The industrial Ethernet switch supports a dual power supply which input voltage is 48-52VDC (Sold without a power adapter and need to order separately). Support reverse connection. Din-rail Mounted Easy to use with Din-rail mounted and save space and time. ( Sold without din rail mount and need to order separately). The din rail switch aslo can be customized to be desktop. Specification Product Name 16port L2 POE Industrial Fiber Switch Product No. IM-FP888GW Port 8x1000Base-FX SFP fiber port, 8x10/100/1000Base-T RJ45 port, 1xconsole port POE Standard POE af/at (15.4W/30W) Input Power 48-52VDC ( Sold without a power adapter), redundant power supply Power Terminal Phoenix terminal Shell IP40 protection grade, metal shell Mount Type Din-Rail Working Temperature -40～75℃（-40～167°F） Product Size 158 x 114.8 x 60mm (6.22x4.53x2.36in) Product Weight 0.85Kg(1.87 lb) Industry Standards EMI：FCC Part 15 Subpart B Class A，EN 55022 Class A EMS：EN 61000-4-2 (ESD) Level 3，EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3，EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3，EN 61000-4-8 Traffic Control：NEMA-TS2 Vibration：IEC 60068-2-6 Freefall：IEC 60068-2-32 Shock：IEC 60068-2-27 Rail Traffic：EN 50121-4 10Port Gigabit Managed PoE Switch 12Port Gigabit Managed PoE Switch 16Port Gigabit Managed PoE Switch 9Port Gigabit Managed PoE Switch 48V5A Industrial Power Supply Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.2 out of 5 stars 11 5.0 out of 5 stars 1 4.4 out of 5 stars 2 — — Price $169.99$169.99 $176.99$176.99 $183.99$183.99 $159.99$159.99 $89.99$89.99 Fiber Ports 2 4 8 1 no data Network Ports 8 8 8 8 no data POE Ports 8 8 8 8 no data Rate 10/100/1000M 10/100/1000M 10/100/1000M 10/100/1000M no data L2 Managed ✓ ✓ ✓ ✓ no data Input Voltage 48-52VDC 48-52VDC 48-52VDC 48-52VDC no data Mounted Way Din-rail Din-rail Din-rail Din-rail Din-rail
Features

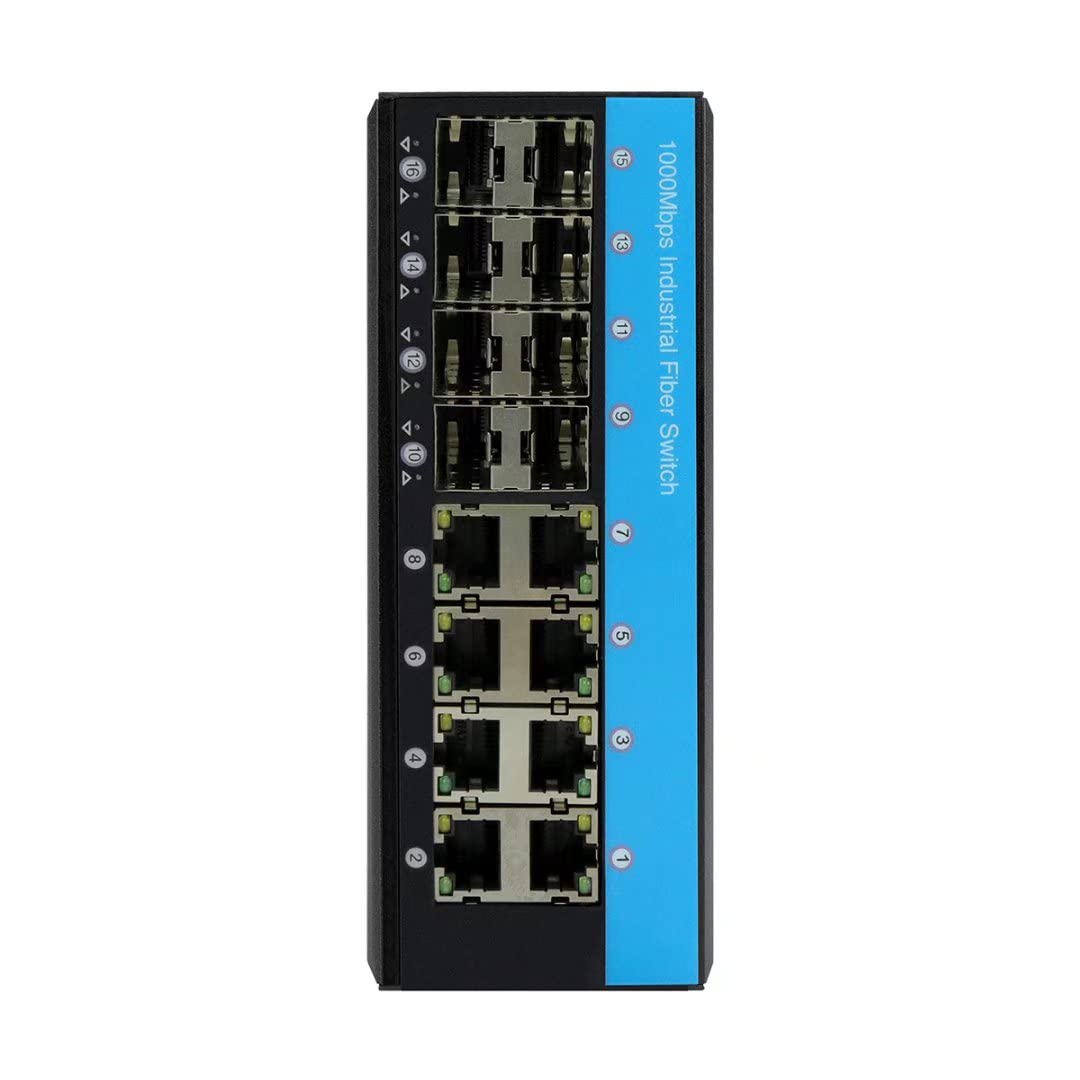

PORT 8 x Gigabit Ethernet RJ45 ports with POE AT 30W for each port, 8 x Gigabit SFP slots, 1 x managed console network port ( WITHOUT SFPS and POWER ADAPTER).

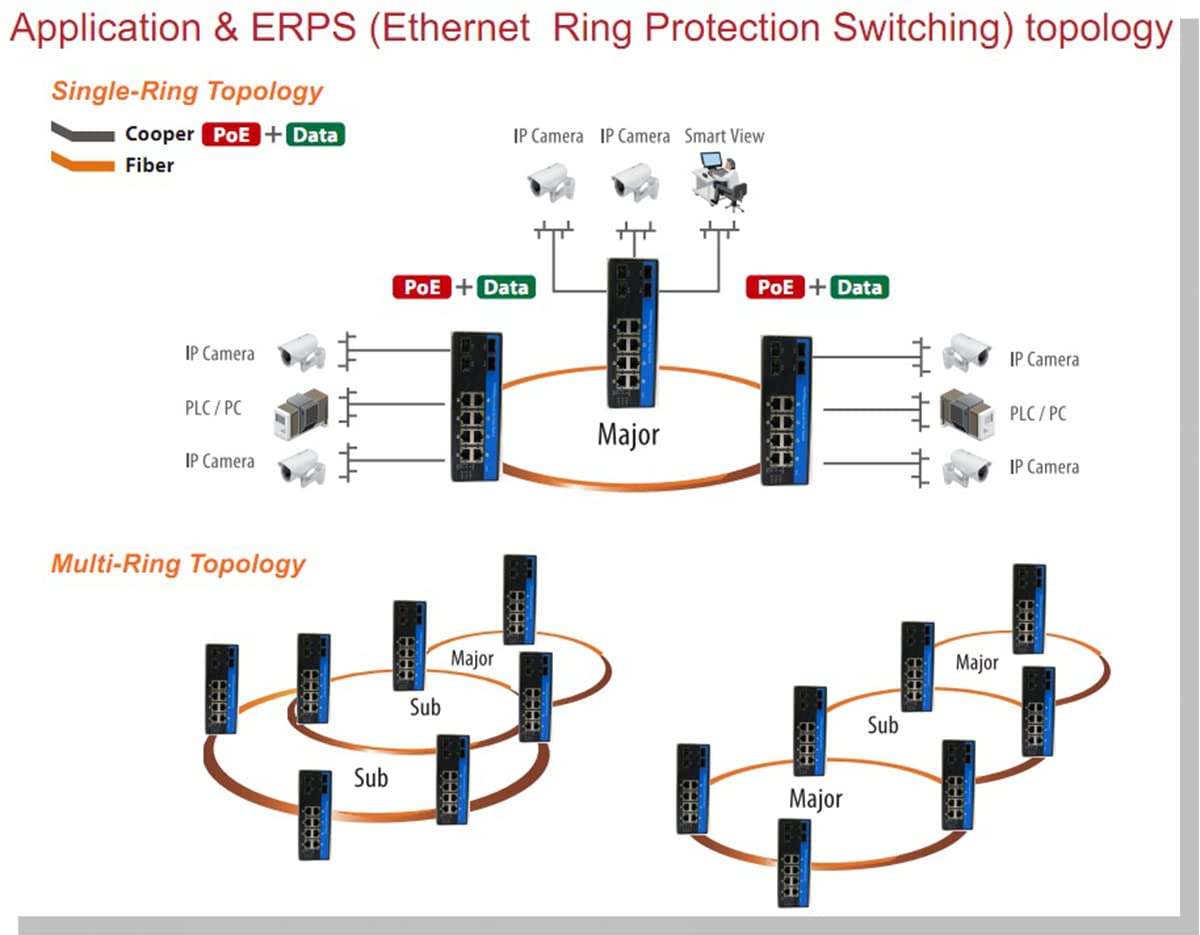

L2 MANAGED This POE switch 8 port managed supports STP, RSTP, MSTP, ITU-T G.8032 EPR, Qos, IEEE802.1q VLAN, VLAN port, based Mac VLAN, IP subnet VLAN, Protocol VLAN, VLAN convert, MVR IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching and other managed functions ( Details are in the description).
POE STANDARD The 8 port POE switch supports POE (15.4W) and POE+ (30W). 1/2 (V+), 3/6 (V-) is the default, and 4/5 (V+),7/8 (V-) is optional wire connection. Total power is 240W.

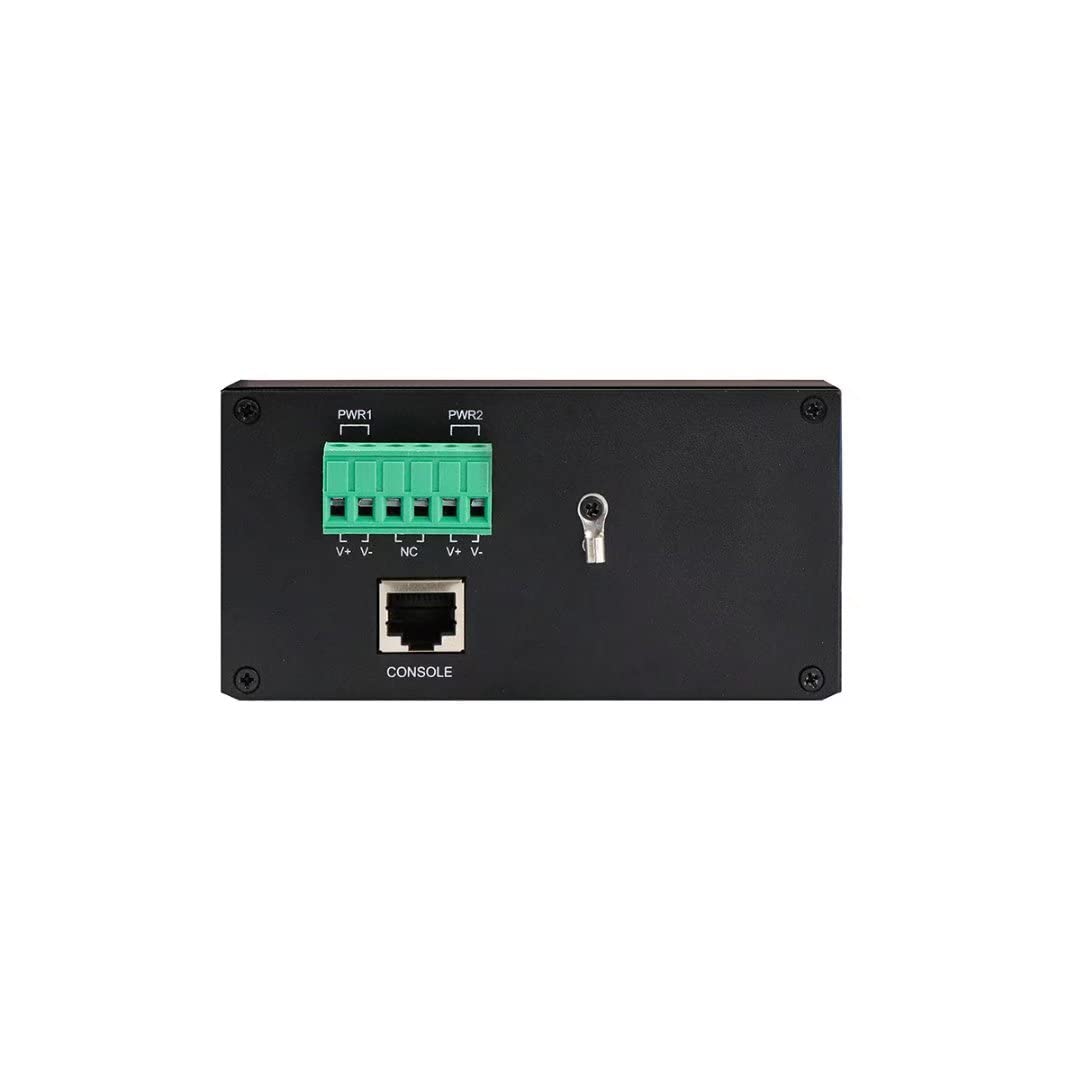

REDUNDANT POWER The 8 ports POE+ managed network switch has dual redundant power inputs with overload current protection (power supply sold separately)
WHAT YOU GET 1pc 8port POE Outdoor DIN-Rail Industrial Managed Switch (without SFP module, without power adapter), 1pc managed cable, 1pc user manual, and lifetime technical support.
