Planet GT-1205A Gigabit Ethernet Media Converter - 1-Port 10/100/1000Base-T to 2-Port 1000FX SFP with DIP Switch | Black Industrial-Grade Network Converter for Office, Data Center & Home Networking
Free shipping on all orders over $50
7-15 days international
29 people viewing this product right now!
30-day free returns
Secure checkout
28263378
Description
The PLANET GT-1205A Gigabit SFP Media Converter has a list of features and functions. DIP Switch for 3-port Operation in Gigabit Switch Mode or Redundant ModeHardware Fiber Port Redundant Standard Complies with IEEE 802.3 10BASE-TComplies with IEEE 802.3u 100BASE-TXComplies with IEEE 802.3ab 1000BASE-TComplies with IEEE 802.3z 1000BASE-SX/LXIEEE 802.3x Full-duplex Flow-Control, Back-Pressure in Half-duplex eliminate packets loss Interface Dual 1000BASE-SX/LX SFP fiber-optic slotsOne 10/100/1000BASE-T Copper, auto MDI/MDIX functionAuto-Negotiation for 10/100/1000BASE-T; Half-duplex or Full-duplex for 10Mbps and 100Mbps, Full-duplex for 1000MbpsSupports maximum frame size up to 10K jumbo packet sizeIEEE 802.1Q Tag VLAN Transparent, Multicast pass-through Redundancy Link status auto-detecting and redundant on Dual ports with the same connector typeAllows only the Primary-Port or the Backup-Port active at a time When the Primary-Port link fail occurs, the traffic swaps to Backup-Port automaticallyOnce the Primary-Port link regains, the traffic swaps from the Backup-Port to the Primary-PortHardware fiber port redundant Mechanical External 5V/2.5A DC power supplyLED indicators for easy network diagnoseDIP switch for 3-port operation with Gigabit switch mode or redundant modeCompact in size, easy installationCo-works with PLANET 10”/19” Media Converter Chassis (MC-700/MC-1500/MC-1500R/MC-1500R48)Wall mounting and DIN-Rail installation supported
Features
PLUG & PLAY INSTALLATION As the GT-1205A Gigabit Media Converter fully complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T and IEEE 802.3z 1000BASE-LX/SX, the Gigabit media conversion installation is quite quick and easy simply by using the plug and play feature.
EASY DEPLOYMENT The GT-1205A Gigabit Media Converter can be used as a standalone unit or as a slide-in module to the PLANET Media Converter Chassis, MC-700 and MC-1500 chassis series. These media chassis can assist in providing DC power to the GT-1205A Gigabit Media Converter and the fiber-optic network can be maintained at one central location.

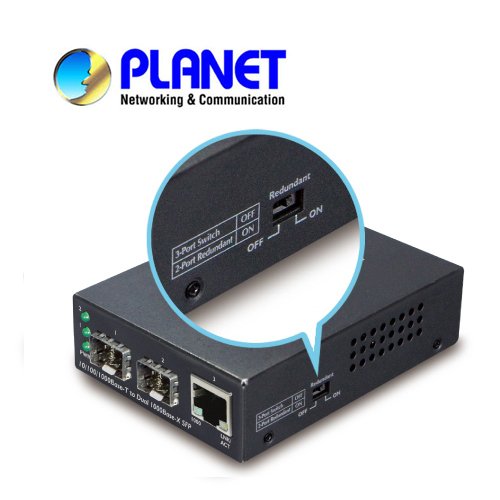

ADJUSTABLE 3-PORT SWITCH MODE or 2 FIBER PORT REDUNDANT MODE Via the built-in DIP switch, the GT-1205A can be configured as 3-port Ethernet switch or 2-port Redundant Media converter. With the 3-port switch mode, the GT-1205A can operate in Store-and-Forward mechanism with high performance. When in the 2-port redundant mode, it provides rapid fiber redundancy of link for highly critical Ethernet applications. The redundant mode also supports auto-recovering function.

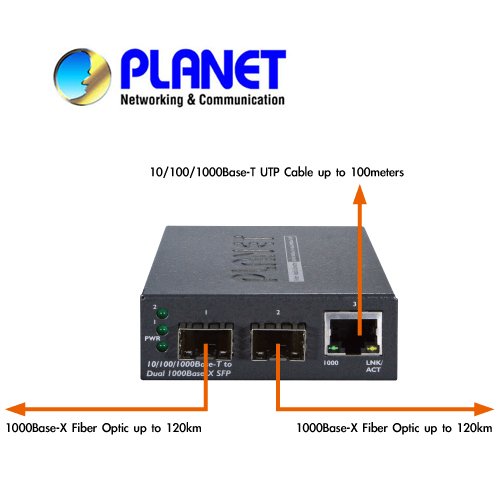

HIGHLY CONVENIENT & DISTANCE EXTENDABLE The GT-1205A is equipped with one 10/100/1000BASE-T port and dual Gigabit SFP slots to support conversion between 10/100/1000BASE-T and 1000BASE-X network. The dual SFP slots make the Ethernet signals connect easily and efficiently by adding single-mode or multi-mode media modules or the combination of both types. The GT-1205A provides high reliability and flexibility to extend the media transmission distance up to 550m+.
2-YEAR WARRANTY Our products sold are of the highest standards available. All products come with a TWO year limited warranty on all products sold by directly by Versa Technology, unless specifically stated otherwise on our product documentation. This warranty period of two years applies from the ship date to all our products which are purchased legally and owned by the original customer.
