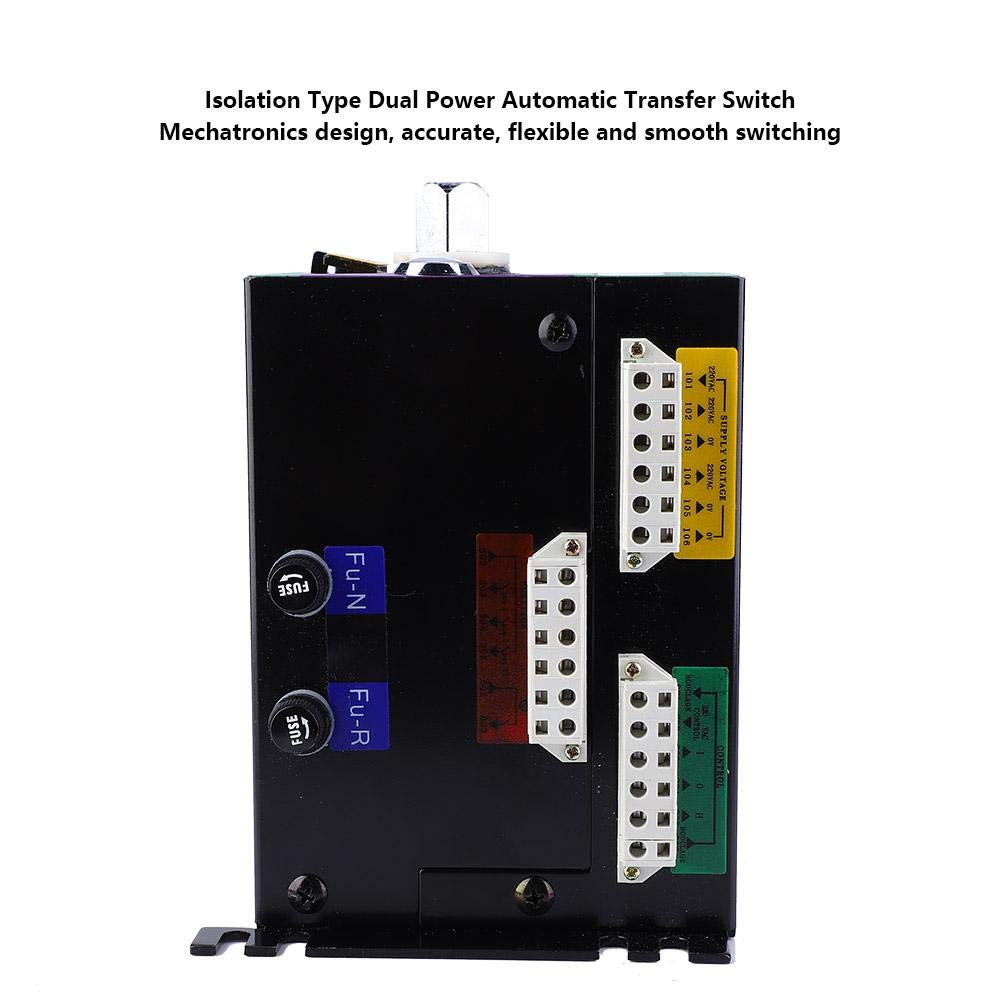

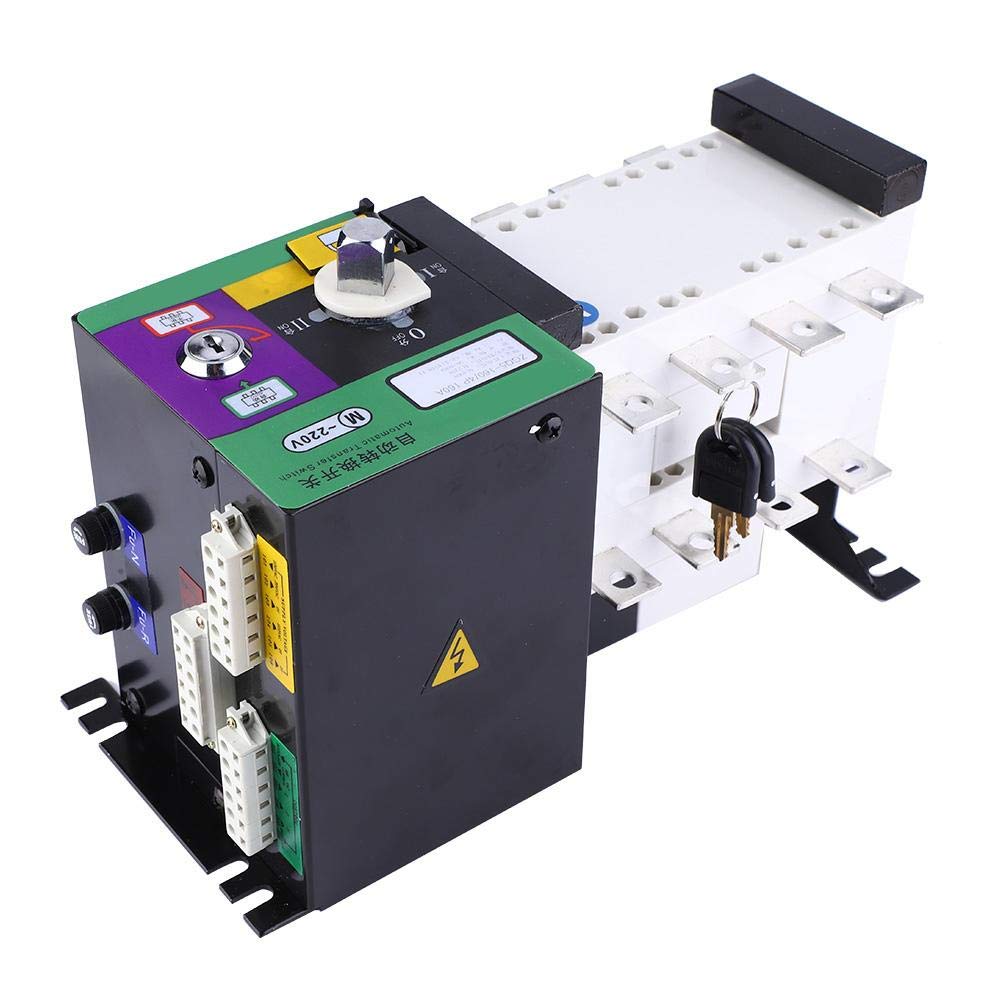

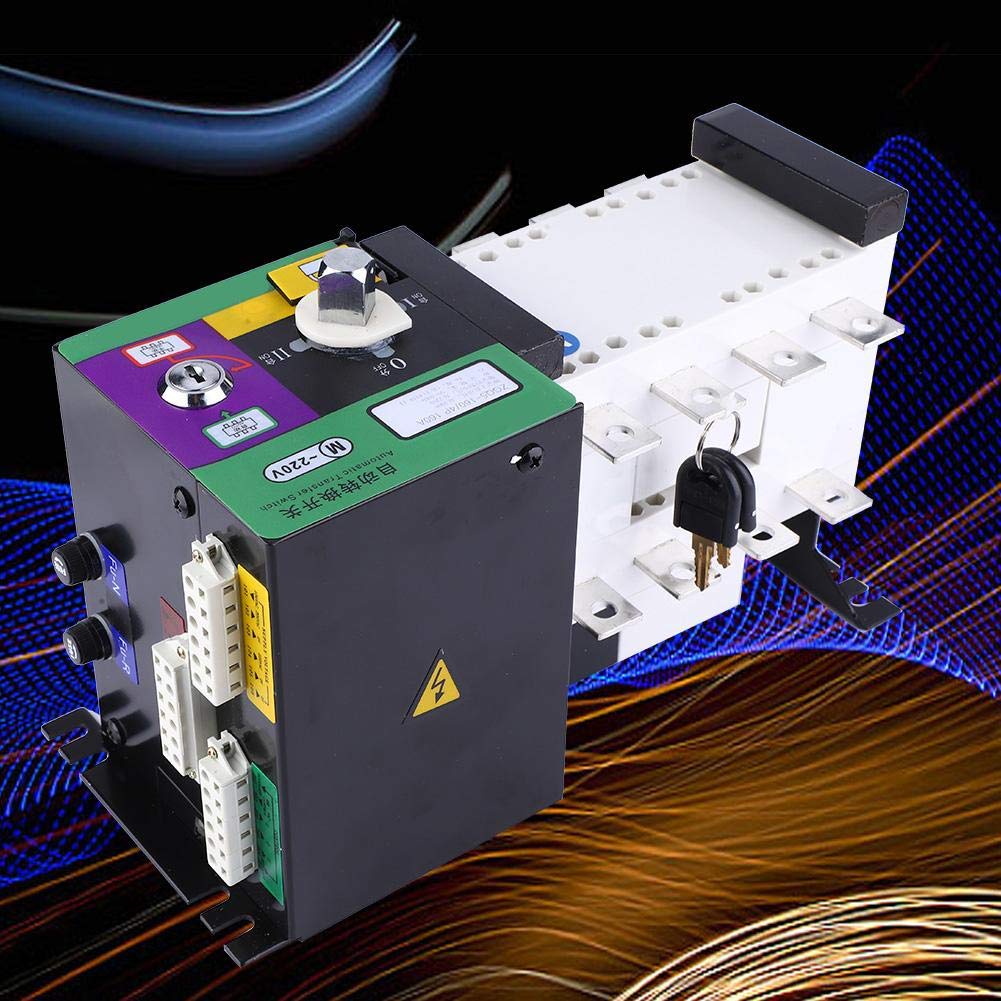

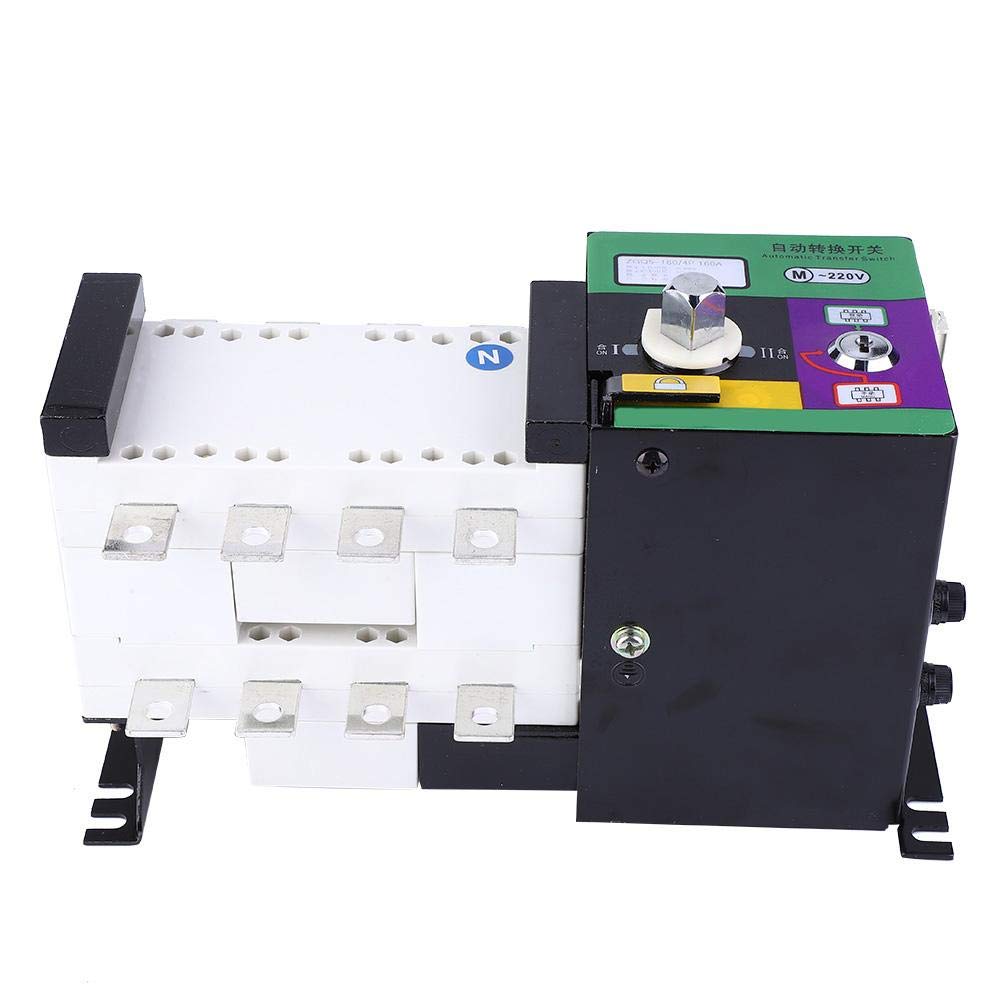

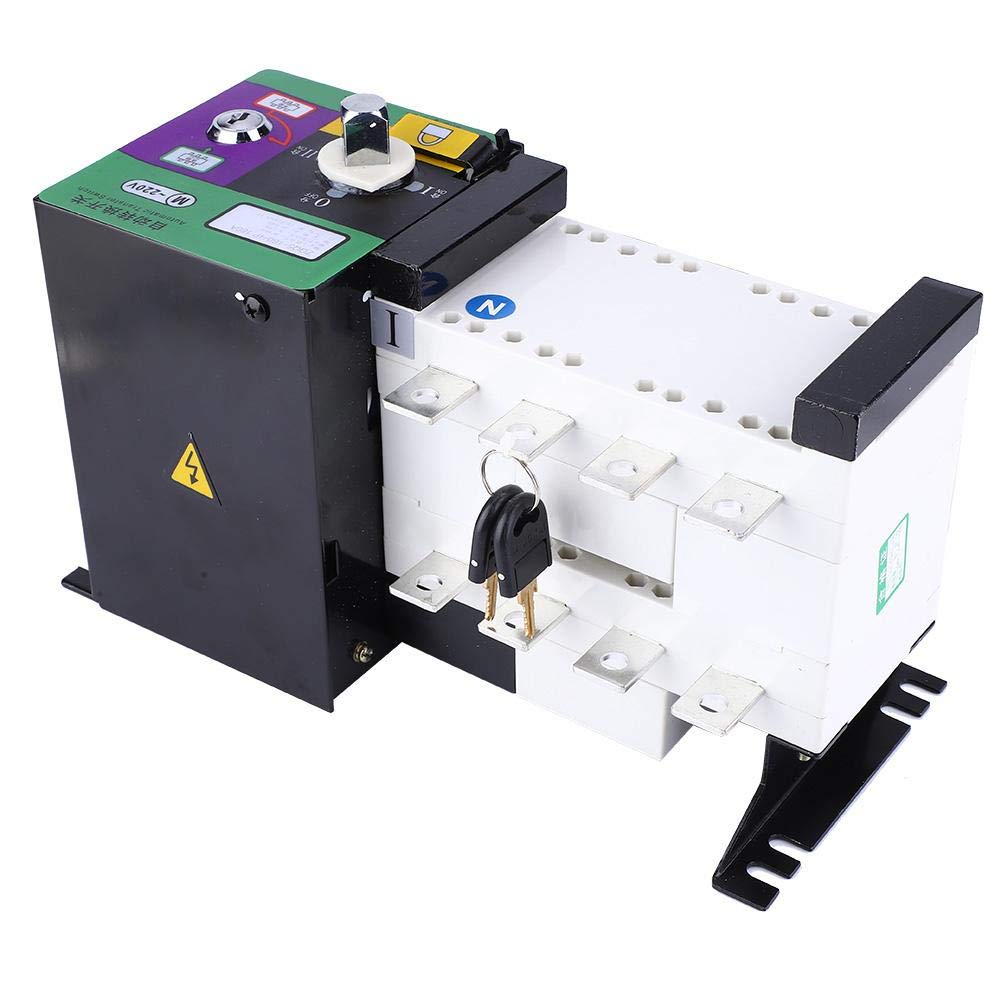

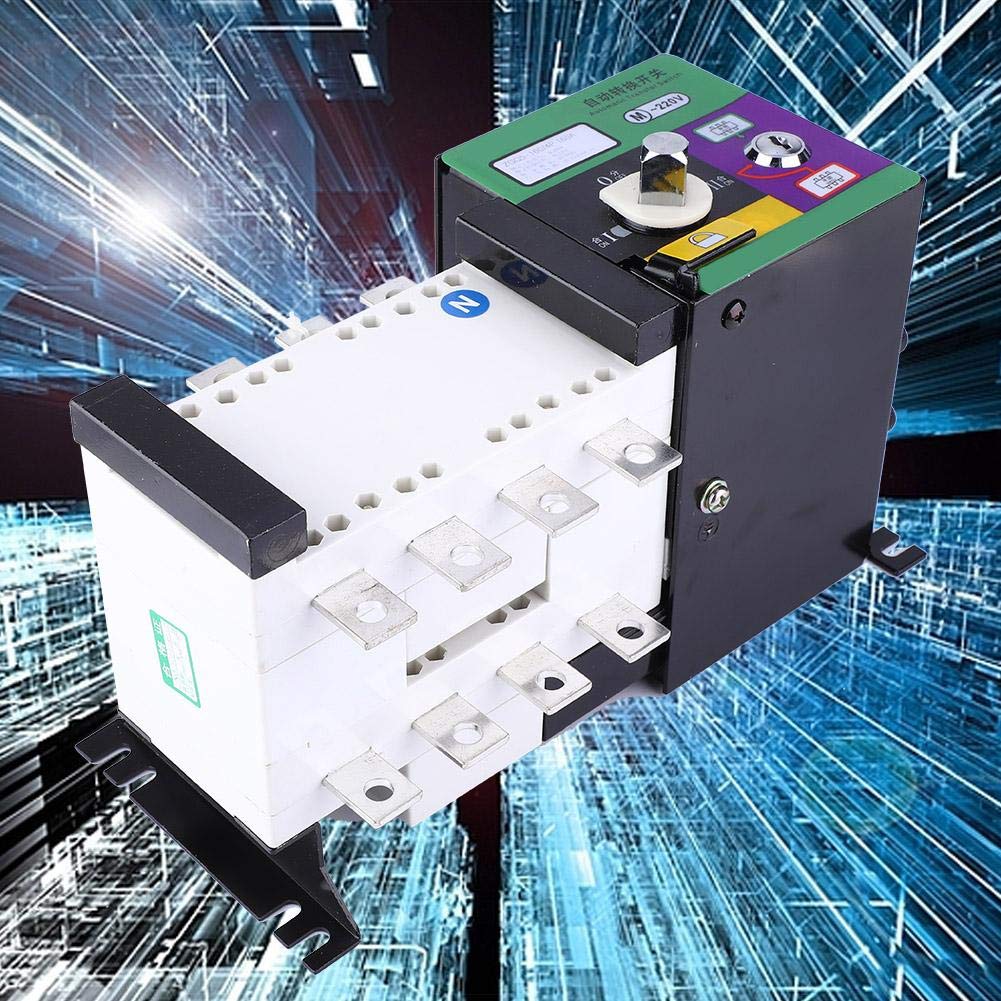

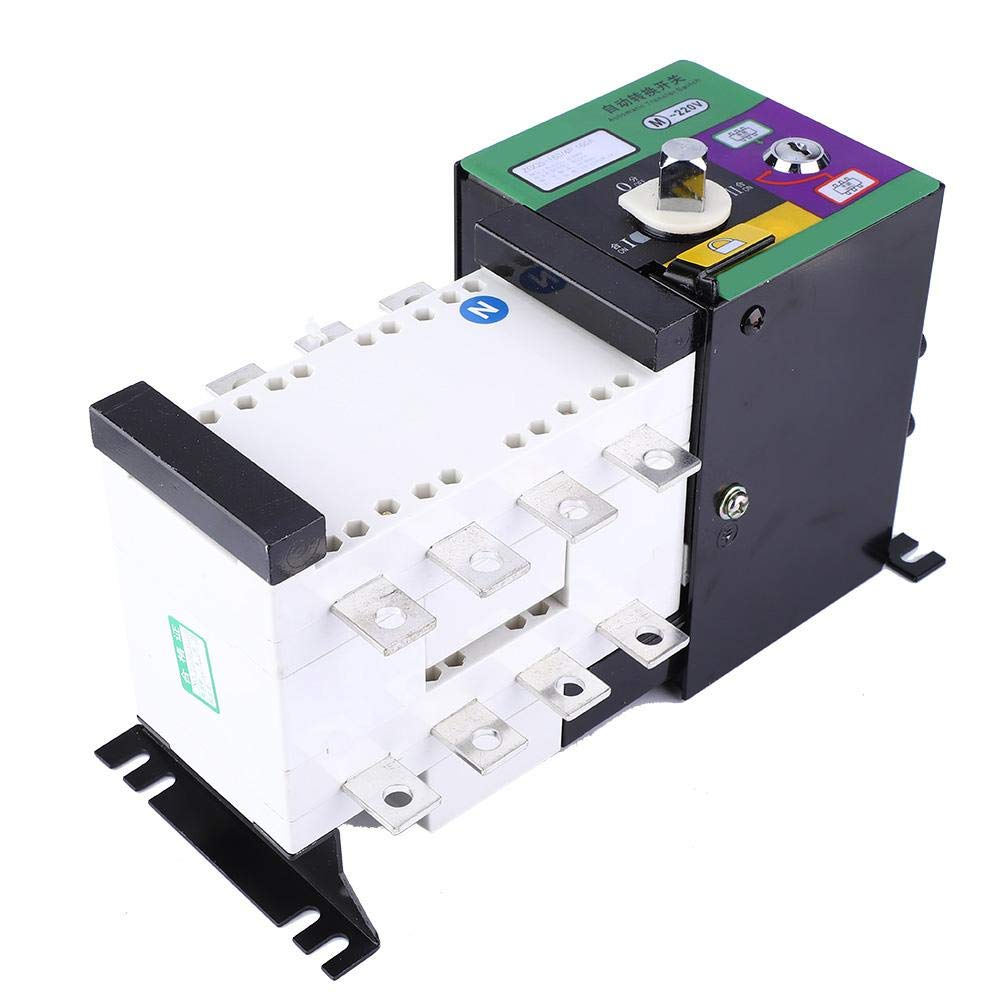

160A 4P Automatic Transfer Switch (ATS) - Automatic Isolation Type Power Transfer Switch for Home Backup, Solar Systems & Emergency Power Supply
Free shipping on all orders over $50
7-15 days international
19 people viewing this product right now!
30-day free returns
Secure checkout
13863398
Description

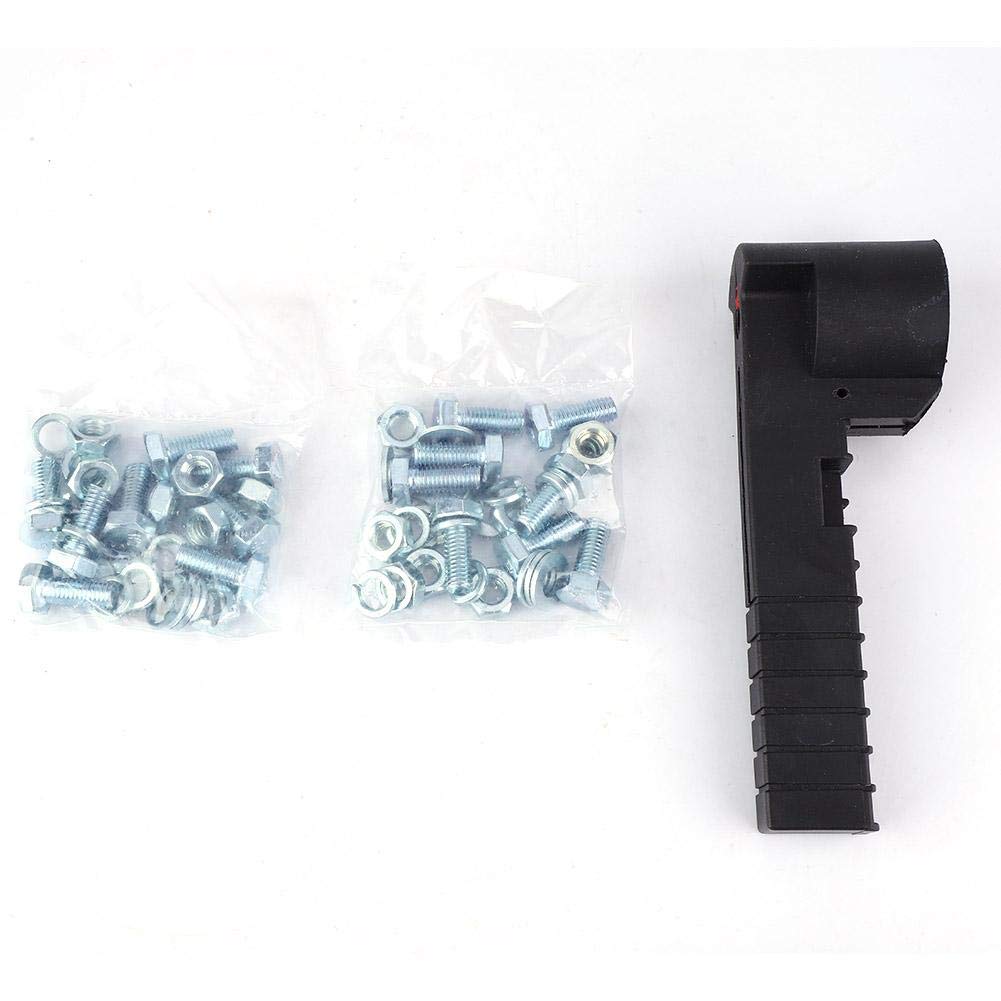

Features: Adopting Doublerow Composite Contact/Transverse Pull Structure/Micromotor Energy Storage And Microelectronic Control Technology, It Basically Realize Zero Arc Over.Four Operating Functions: Emergency Manual Operation, Electric Remote Control Operation, Emergency Disconnection In Automatic Control State, Automatic Control Operation.Adopting Mechanical And Electrical Interlocking, The Actuator Adopts Independent Load Disconnecting Switch, And To Use.Adopting Zerocrossing Technology, It Can Be Forced To Zero (Disconnect Two Power Supplies At The Same Time) In Emergency Situations To Meet The Needs Of Fire Linkagethe Load Isolating Switch Is Switched By A Single Motor Drive, The Switch Is And Stable. Specification: Insulation Voltage: 500V Rated Voltage: 400V Rated Current: 160A Rated Impulse Withstand Voltage: 4Kv 3C Rated Voltage Range: 37V440V Operating Temperature: 50~40℃, ≤95%Rh Altitude: ≤2000M Package List: 1 X Power Automatic Transfer Switch 2 X Pack Of Mounting Accessories 1 X Manual Handle 1 X User Manual
Features
Four Operating Functions Transfer Switch, Emergency Manual Operation, Electric Remote Control Operation, Emergency Disconnection Under Automatic Control, And Automatic Control
Load Isolation Switch Generator Transfer Switch, The Load Isolation Switch Is Driven By A Single Motor, And The Switch Is And Stable. It Is Suitable For Automatic Conversion Between Main Power Supply And Backup Power Supply In Power System, Automatic Conversion Of Two Loads And Safety Isolation Equipment.
Microelectronic Control Technology Automatic Transfer Switch, Adopting D Energy Storage And Microelectronic Control Technology Of DoubleRow Composite Contact/Lateral Pulling Structure/Micromotor, Basically Achieving Zero Arc Rotation.
Independent Load Isolating Switch The Actuator Adopts Electromechanical Interlock And Independent Load Isolating Switch, Which Is And To Use.
ZeroCrossing Technology Generator Transfer Switch 30 Amp Kit, Using ZeroCrossing Technology, It Can Be Forced To Zero In An Emergency (Two Power Supplies Are Disconnected At The Same Time) To Meet The Needs Of Fire Linkage.
