Miniature Limit Switch - Compact & Durable Micro Switch for Industrial Automation, Robotics, and DIY Projects | Perfect for CNC Machines, 3D Printers, and Home Appliances
Free shipping on all orders over $50
7-15 days international
30 people viewing this product right now!
30-day free returns
Secure checkout
91067148
Description

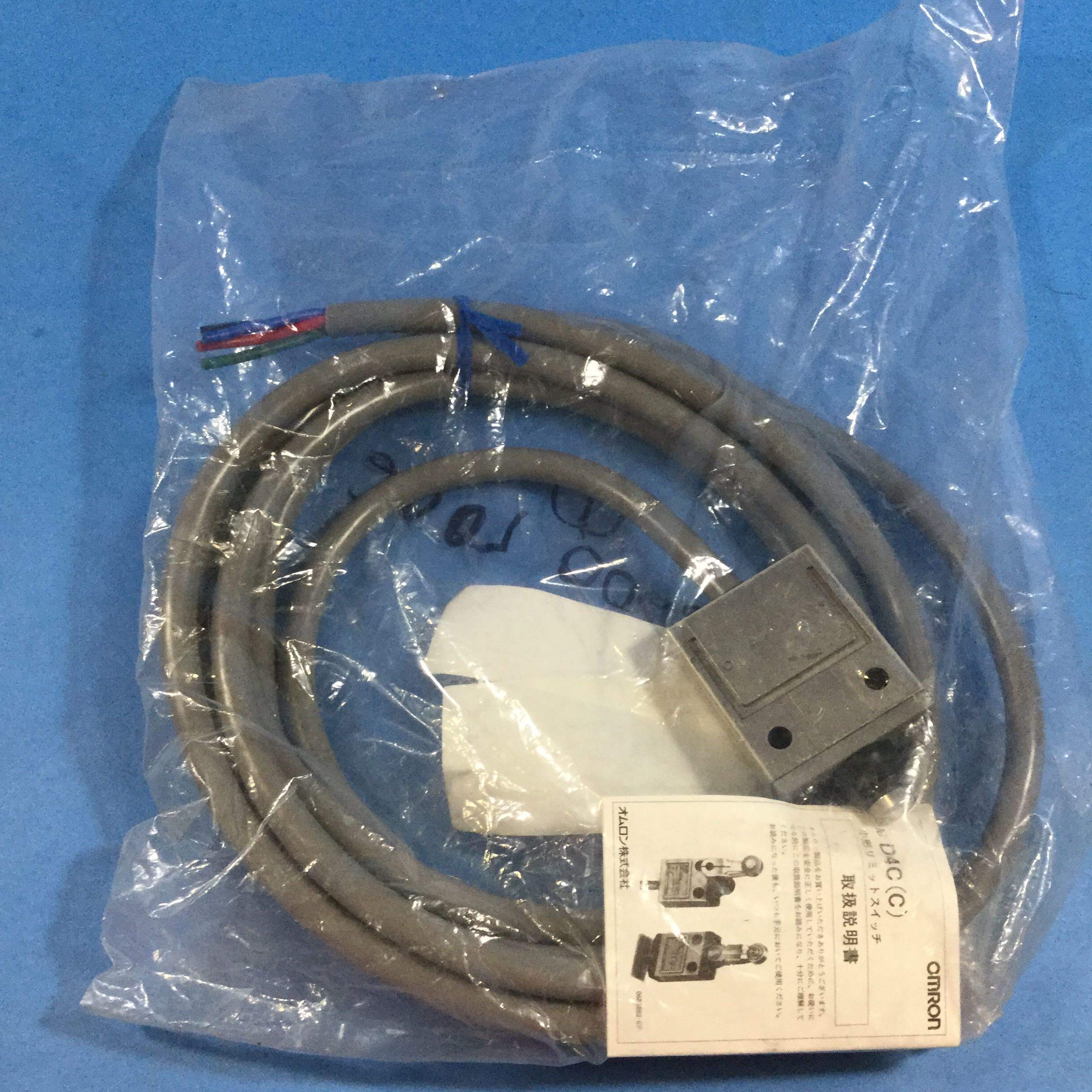

'Limit Switch, Compact, Sealed, Pre-Wired, Height 2.20 In, Depth 0.63 In, Width 1.57 In, Replacement Head G2290084, Contact Type SPDT, Style Sealed Pin Plunger, Voltage 250VAC, Amps 5, NEMA Rating 3, 4 and 13, Operating Temp Range -14 to 158 F, Operating Force 17.65N, Standards UL/CSA/CE, Cable Length 9.8 Ft'
Features
Price For Each Body Material Aluminum NEMA Rating 3, 4, 13 Depth 0.63" Width 1.57" IP Rating 67 Operating Temp. Range -14 Degrees to 158 Degrees F Contact Form SPDT Item General Purpose Limit Switch Standards UL, CSA, CE Movement Top Travel Maximum Pre-Travel 1.8mm, Minimum Over-Travel 3mm Item General Purpose Limit Switch Amps 5
Operating Force 17.7N-m Actuator Style Plunger Electrical Connection 3m Cable, SJT Wiring Entry 3m Cable Series D4C Voltage Rating 240VAC Height 2.20" Actuator Location Top Country of Origin (subject to change) Japan
