Safety Interlock Switch 2NC 10A@600V - Heavy Duty Electrical Safety Device for Industrial Machinery & Equipment Protection
Free shipping on all orders over $50
7-15 days international
14 people viewing this product right now!
30-day free returns
Secure checkout
80666575
Description

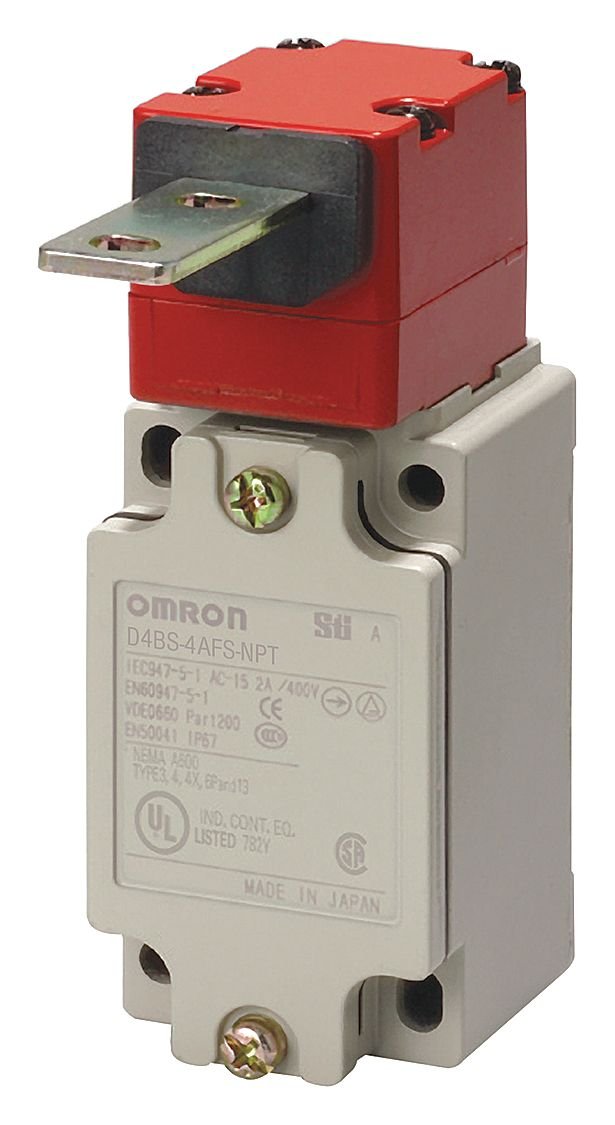

'Safety Interlock Switch, Metal Locking, Contact Form 2NC, Actuator Length Key Dependent, Connection Type M20, AC Contact Rating 10A @ 600V, Series D4BS, DC Contact Rating 0.4A @ 250V, Height 4-3/8 In., Width 1-9/16 In., Depth 1-11/16 In., IP Rating 67, Operating Temp. Range -40 Degrees to 80 Degrees C, Contact Material Silver, Conduit Size M20, Body Material Aluminum Die-Cast, Head Material Aluminum Die-Cast, Pre-travel 10+/-5mm, Positive Travel 20mm, Movement Lateral'
Features
Price For Each Pre-travel 10 +/-5mm Conduit Size M20 Operating Force 19.61 in.-lb. Max Connection Type M20 Actuator Length Key Dependent Item Safety Interlock Switch Positive Travel 20mm Movement Lateral Includes 1/2" NPT Adapter IP Rating 67 Standards EN60947-5-1 (Certified Direct Opening), GS-ET-15, UL508, CSA C22.2 No.14, GB14048.5
Body Material Aluminum Die-Cast Width 1-9/16" Style Metal Locking AC Contact Rating 10A @ 600V Height 4-3/8" DC Contact Rating 0.4A @ 250V Depth 1-11/16" Head Material Aluminum Die-Cast Operating Temp. Range -40 Degrees to 80 Degrees C Series D4BS Contact Material Silver Contact Form 2NC Country of Origin (subject to change) Japan
