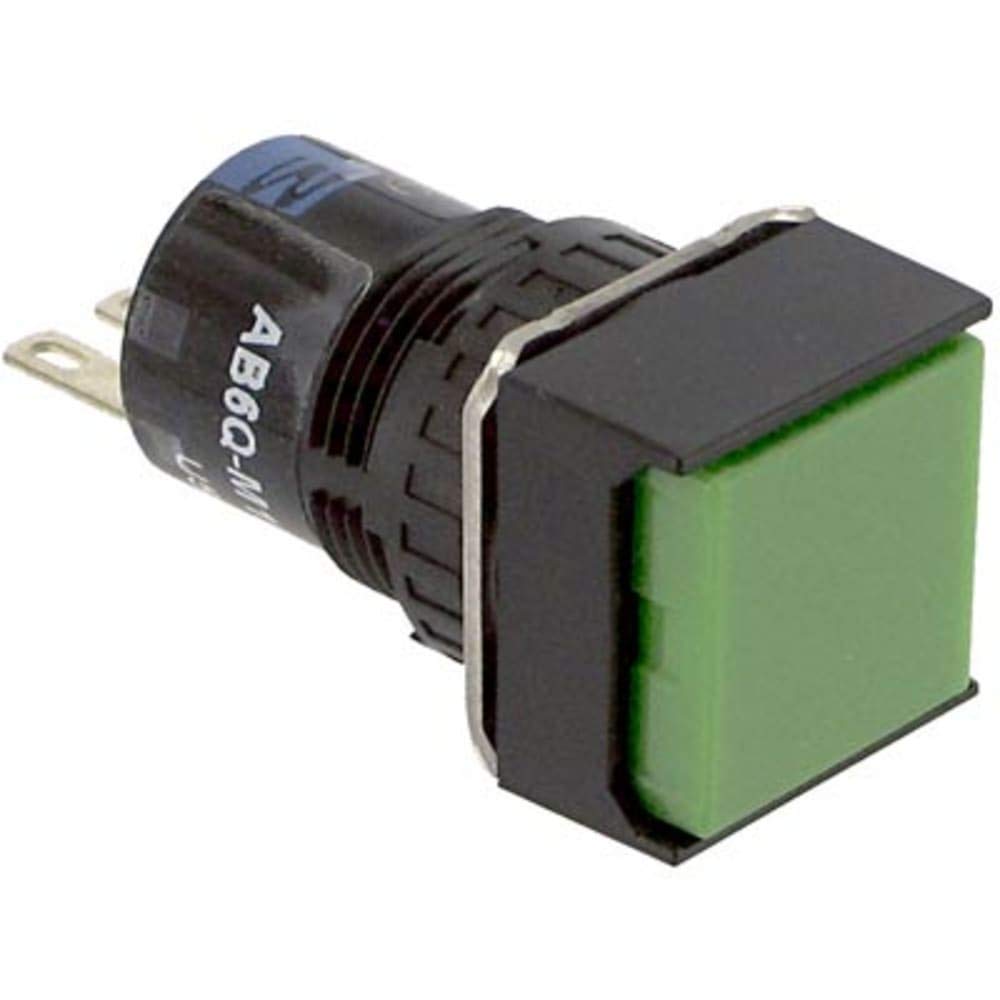

Waterproof Momentary Push Button Switch (IP65) - SPDT, Square Lens, Green - Pack of 2 - Ideal for Industrial Control Panels, Marine Equipment & Outdoor Machinery

Overview Key features of the A6 series switches and pilot lights include: 16mm (5/8") mounting hole LED illumination Compact design saves space Momentary, Maintained, Selectors, and E-Stops Gold-clad Silver contacts for reliable low level switching Snap action contacts IP40 (dustproof) or IP65 (oiltight) versionsSpecification:- Dielectric Strength : 2000 VAC Electrical Life : 100000 Operations (Min.) Insulation Resistance : 100 MegOhms (Min.) IP Rating : IP65 Material, Bushing : PBTB Material, Casing : Translucent Nylon Material, Contact : Gold-Clad Silver Material, Terminal : Tin Plated Mechanical Life : 100000 (Operations Min.) Maintained, 1000000 (Operations Min.) Momentary, 250000 (Operations Min.) Selector „Keylock Mounting Hole Size : 5/8 " Mounting Type : Panel Mount Number of Poles : 1 Pole Operation : Momentary Series : A6 Series Special Features : Oiltight Standards : UL Recognized (File No.E55996), CSA Certified (File No. LR21451) Temperature, Operating : -25 to +55 °C Termination : QC Tabs Type : Push Button Voltage Rating : 120 VAC
