6 Gang Switch Panel Automatic Dimmable - Universal Electronic Relay System Circuit Control Box with On/Off LED Touch Switch for Trucks, UTV, ATV, Boats & Cars | Perfect for Off-Roading, Marine & Automotive Electrical Control
Free shipping on all orders over $50
7-15 days international
10 people viewing this product right now!
30-day free returns
Secure checkout
61409678
Description

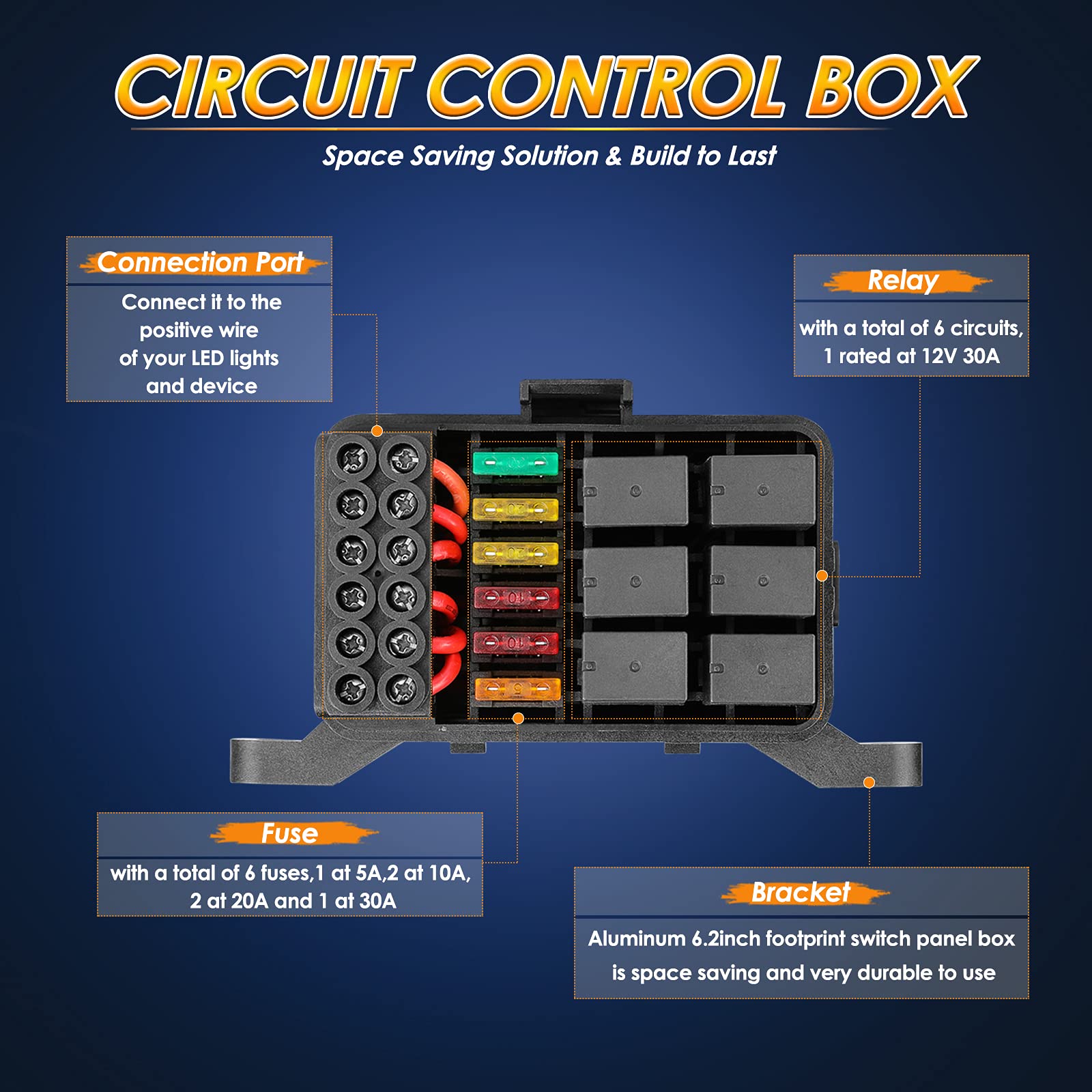

About us Roador is committed to providing you with high quality LED lights and accessories to help make your driving and working conditions safer and more enjoyable. 6 Gang Switch Panel 6 Gang switch panel automatic dimmable system given the massive space saving with smaller control box. Perfect fit for Off-road, Powersports, Boat, Marine, Trailers, Bus, Heavy-duty Machines, etc. This is the best way to control all the wires together to make your cool vehicle look super clean and tidy. Input Voltage: 12V DC Maximum Power: 720W Maximum Current: 60A Panel Size: 3.7*2.6 inch Control Box Size: 6.2*3.5*3.2 inch Panel Material: High quality ABS and aluminum Operating Temperature: - 40° C ~ + 105° C 6Pcs auto fuse for replacement 6 Circuits: 1 Rated at 5A max each, 2 rated at 10A max each, 2 rated at 20A max each, 1 rated at 30A max each Automatic Dimmable 6 Gang Switch Panel with Dimmable Function has superb sensitivity, and the backlit brightness can be automatically adjusted with the change of the brightness of the environment. Switch Panel Switch panel built with IC encapsulation, stable and solid power on/off backlight color. Backlight color in green, power-on indicate light color in red. Switch Panel Mounting Provides 2 easy different mounting ways, you can install the panel box anywhere you like with the Adjustable mounting brackets or 3M double-sided tape. 50PCS Sticker Labels Including 50pcs self-adhesive labels stickers, it can be attached easily and will not fall off. And 45pcs standard & 5pcs customized let you can DIY the switch panel.
Features
OVERVIEW - Operating Voltage12V; Max power rating 720 Watts; Max current rating 60A; The universal 6 gang switch panel have Memory function, allows you to control up to 6 different LED lights or devices easily, which is the best way to clean up the wiring harness in your car, make your car look super clean and tidy. Including 50pcs reusable switch stickers, you can DIY your own labels as you want. With high stability and strong anti-interference ability, switch box can be used in any severe environment.
DIMMABLE BACKLIT - The backlit brightness of the switch panel is Automatic Dimmable, dimmable according to the brightness variation of the environment. The brighter the surrounding is, the brighter the backlit will be, and vice versa. It is designed to provide best comfort and ease driving experience, effectively protecting your eyes and driving safety!
SAFETY FIRST DESIGN - Built in relay, auto fuses and integrated temperature protection system, the 6 button switch panel provides reverse polarity protection,over-voltage protection, over-current protection, overload protection. Besides, the switch panel kit comes with 6pcs extra replaceable auto fuses. All of these design to ensure all connected lights & accessories work safely and protect users away from accidents.

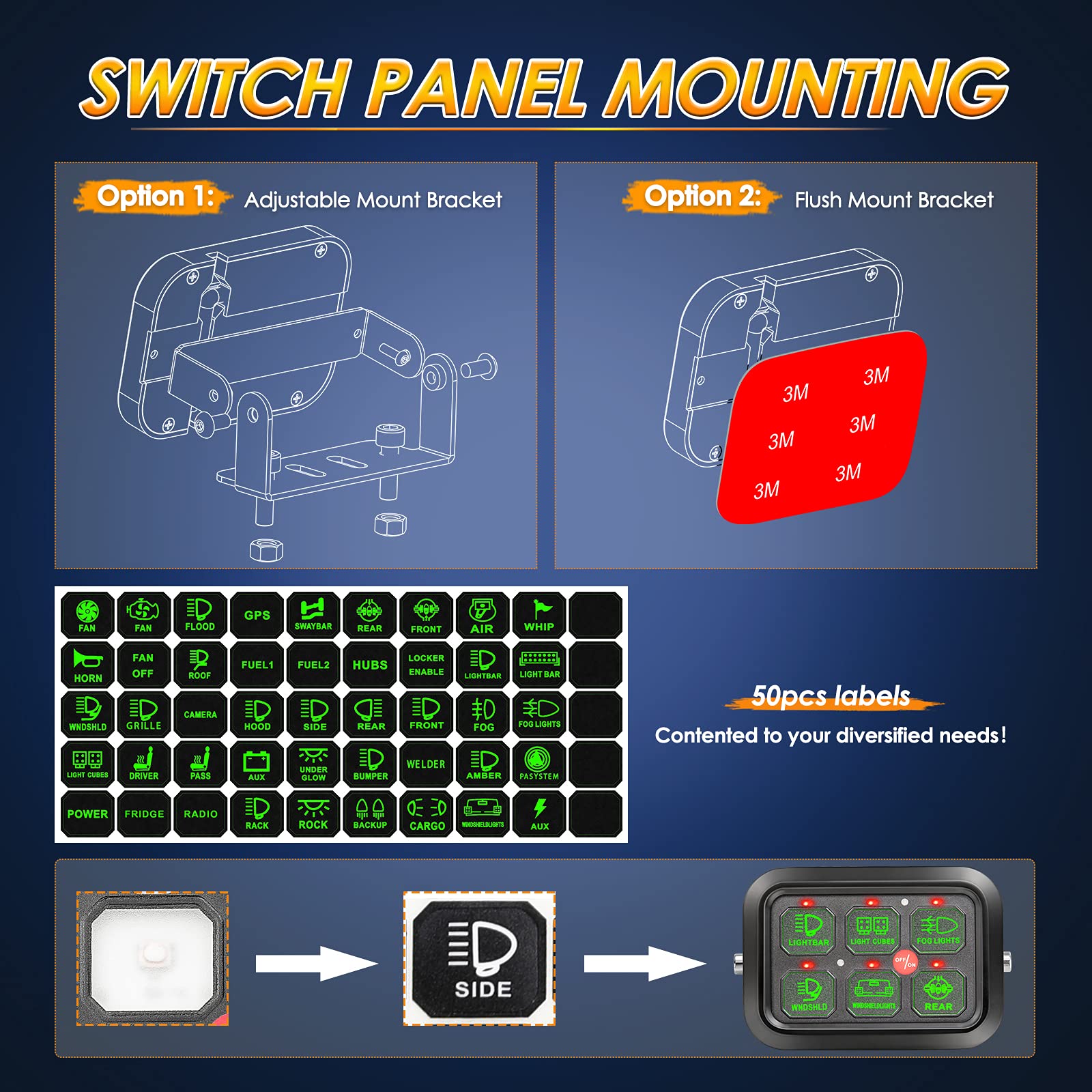

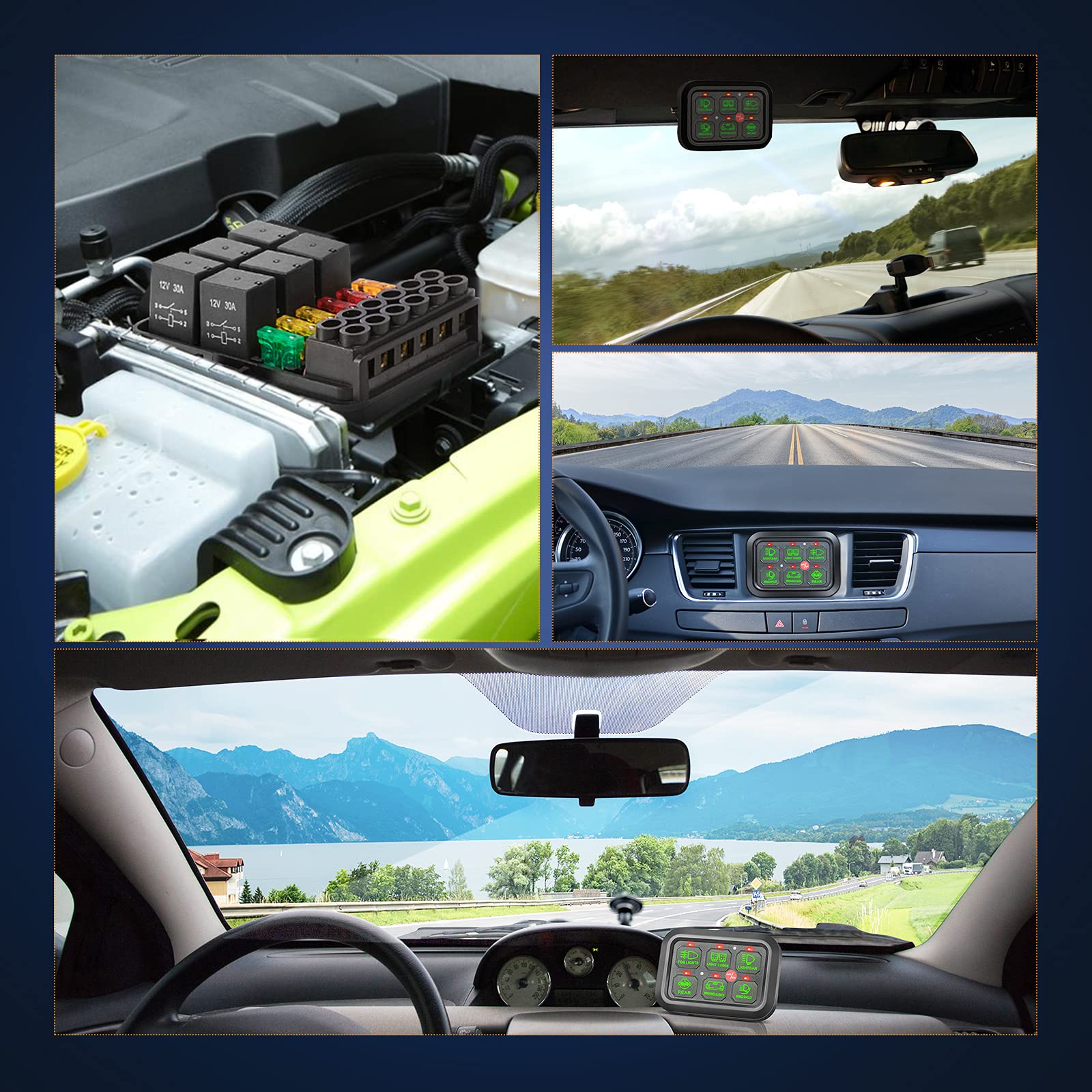

EASY INSTALLATION - The switch panel power system is super compact, only 3.7*2.6'', We provide 2 ways installation, option 1 Adjustable mount bracket; option 2 3M Double-sided tape. Smaller size switch panel and control box more space-saving and can be mounted on many application scenes, such as center console, dashboard, overhead sunglasses holder, dash panel, etc.

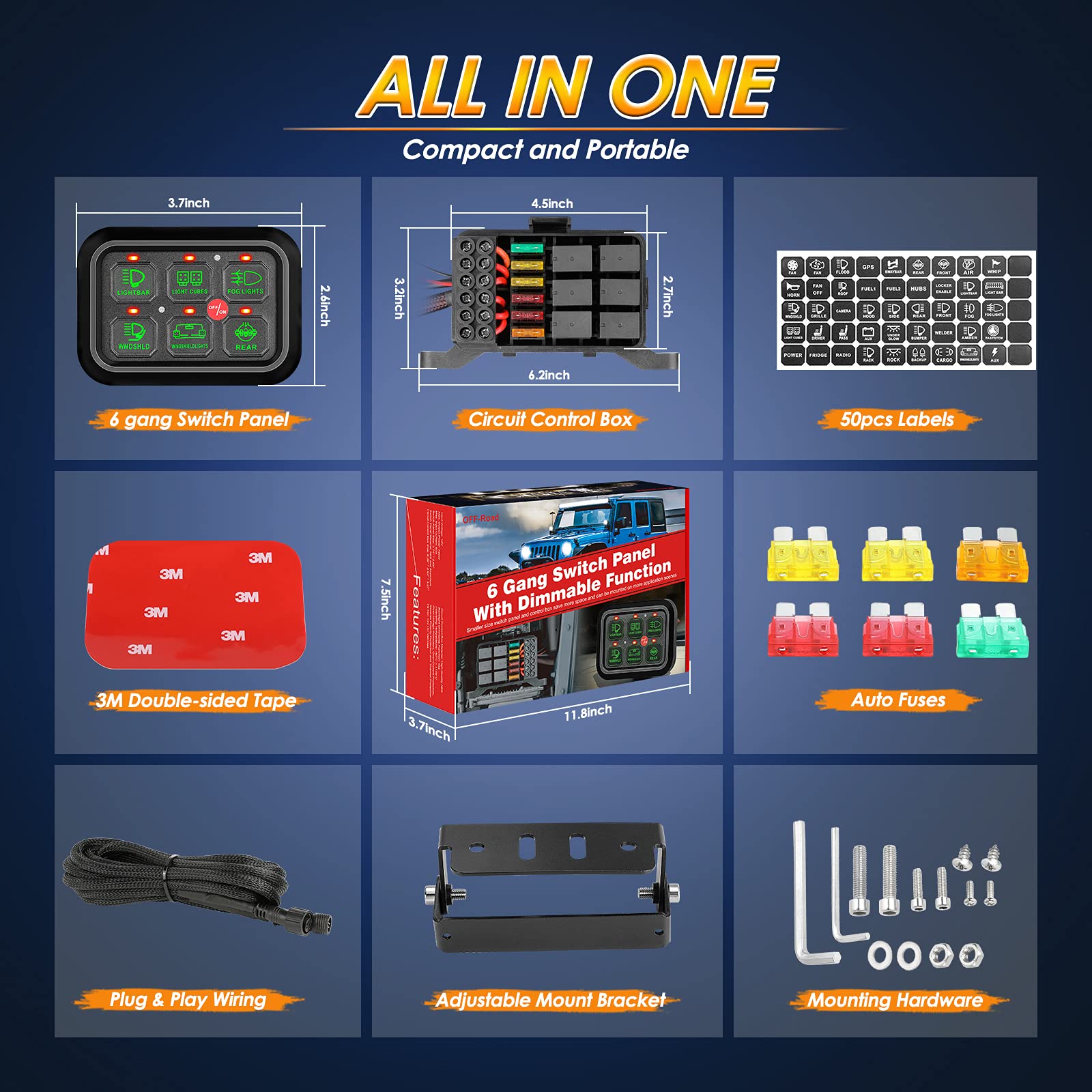

BUY WITH CONFIDENCE - The 6 gang switch panel perfectly fit for all 12V vehicles and devices, such as different types of Truck, Pickup, SUV, UTV, ATV, 4X4, Marine, Boat etc.Box comes with 6 Gang Switch panel, Relay Circuit Control Box, 50pcs label stickers, Durable long play&plug wiring harness, Instruction Manual and All necessary accessories.
